This is the calibration I carried on my Plasma according to D-Nice seetings explained in http://www.highdefjunkies.com
D-Nice's panel prep is step 1, and is used primarily to evenly age phosphors to such a degree that that the calibration settings you'll apply in step 2 will get the most consistent results.
****UNDER NO CIRCUMSTANCE SHOULD THESE SETTINGS BE USED WITH ANY OTHER SOURCE MATERIAL BEYOND THE PANEL PREP USB/SD CARD FILES****
Recommended 100 Hour Panel Prep Settings for North American Panasonic TC-PxxST30/GT30/VT30 models (ONLY to be used with Evangelo2's USB/SD Card Files!!!!!!!!)
*****Note: This procedure is designed to prepare your display for the reference settings listed below by aging all pixels equally with the same content.
This procedure is NOT designed nor recommended to be used as Break-in, Image Retention and/or Burn-in prevention.*****
To begin, here is a spelled out guide for setup if you want to know exactly which buttons to press when doing the initial setup, credit to IanS @http://www.highdefjunkies.com:
i: Put the batteries in your remote, and hit the red 'power' button
This will take you through a couple of initial setup steps. Skipped everything you can, as you can revisit this in the menu after you have done the prep.
ii: Plug your USB stick, with the photos on it, into the side of the TV. If you used a Mac to put the photos on, see question 2.
iii: Press 'VIERA TOOLS' -> Media-Player -> Photos
This will show thumbnails of all the pictures on your USB stick
iv: Now, press 'MENU' on your remote
Choose 'Picture' -> go in and make all the settings from post #1 up to the 'Slideshow Settings'
This will apply the settings to the photos in your slideshow
When done press the 'RETURN' button on your remote
v: Now press the red rectangular button under the 'R' on your remote
vi: Set the 'Slideshow Settings' from post #1
vii: Choose the top menu item here and press it to 'start slideshow'
viii: wait for 4 days or 100 hours :
iX:Enter into SM menu or ProSettings in Remote and enter Post #2
(for VT30 models, you can enter them in remote itself directly choosing HDTV source like BluRay-for each HDMI input and then advanced picture settings ProSettings in menu)
Initial Break-in with Photo-Slides-100 hrs Post#1
Photo Settings
Picture Mode: Custom
Contrast: 100
Brightness: 50
Color: 70
Tint: 0
Sharpness: 50
Color Temp: Cool2
Photo Enhancement: Off
C.A.T.S: Off
Video NR: Off
Pro Settings
***Leave all settings in this menu at their default***
HDMI Settings
***Leave all settings in this menu at their default***
Advance Picture
Block NR: Off
Mosquito NR: Off
Motion Smoother: Off
Slideshow Settings
Frame: Off
Photo Effect: Off
Transition Effect: Off
Photo Size: Normal
Burst Playback: Off
Display Interval: Slow
Repeat Playback: On
Entering into ServiceMenu (SM)
2011 Models : _X3 / S30 / ST30 / GT30 / VT30
2010 Models : _X24 / C2 / U2 / S2 / G20 / G25 / GT20 / GT25 / VT20 / VT25
· Press and hold the {VOL -} button ON THE PLASMA TV.
· Then press the {INFO} button on the remote control 3 times.
· "Start Adjustment Menu" message will be displayed followed
by the Service Menu after few seconds.
· ADJUST {Picture Adjustment}
· WB-ADJUST {White Balance Adjustment}
· OPTION {Option Setting}
· V-SUS {V-SUS Adjustment}
· AGING
· SRV-TOOL {Service Tool}
{1} & {2} buttons move through options
Press the {2} button once to select "SRV-TOOL".
Then press the {OK} button to access it.

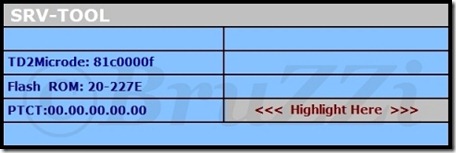

Using the cursor keys, highlight the right side
of the last item "PTCT :00.00.00.00.00" :
Then press and hold the {MUTE} button for 3 seconds.

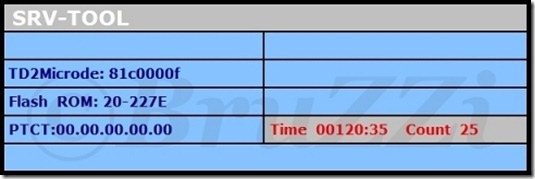

Time and Count will be displayed in red color:
__TIME = Hours : Minutes of operation.
COUNT = Times the Plasma was powered on.
To exit, unplug the power cable.
WARNING BY BRUZZI: The {VOL+} and {VOL-} buttons are used
to change values while in the Service Menu. Make sure not to touch
those buttons when navigating menus / sub-menus.
EPROM Updated Post#2
EPROM Updated MJ Series North American TC-P65VT30 Reference Settings
*****Note: These settings are designed exclusively to be used on North American TC-P65VT30 displays after completing the Panel Prep procedure listed post #1.
Please do not use these settings unless you have follow post #1 entirely.*****
Picture Mode: Custom
Contrast: 72
Brightness: 55
Color: 36
Tint: 0
Sharpness: 0
Color Temp: Warm2
Photo Enhancement: Off
C.A.T.S: Off
Video NR: Off
Pro Settings
Colorspace: Normal
W/B High R: 0
W/B High G: 0
W/B High B: 0
W/B Low R: 0
W/B Low G: 0
W/B Low B: 0
10 Point W/B
10 W/B R: -10
10 W/B G: 0
10 W/B B: -14
20 W/B R: 5
20 W/B G: 0
20 W/B B: 18
30 W/B R: 3
30 W/B G: 0
30 W/B B: 7
40 W/B R: 6
40 W/B G: 0
40 W/B B: 13
50 W/B R: 5
50 W/B G: 0
50 W/B B: 18
60 W/B R: 7
60 W/B G: 0
60 W/B B: 8
70 W/B R: 2
70 W/B G: 0
70 W/B B: 7
80 W/B R: 6
80 W/B G: 0
80 W/B B: 15
90 W/B R: -1
90 W/B G: 0
90 W/B B: 6
100 W/B R: 3
100 W/B G: 0
100 W/B B: 9
10 Point Gamma
10 Gain: -50
20 Gain: -10
30 Gain: -3
40 Gain: -24
50 Gain: -26
60 Gain: -20
70 Gain: -24
80 Gain: -25
90 Gain: -5
100 Gain: 0
CMS
R-Hue: 3
R-Sat: -3
R-Lum: 50
G-Hue: 7
G-Sat: 14
G-Lum: -49
B-Hue: -13
B-Sat: 22
B-Lum: 49
Y-Hue: -24
Y-Sat: 5
Y-Lum: -19
C-Hue: 36
C-Sat: -14
C-Lum: -15
M-Hue: 16
M-Sat: 7
M-Lum: 15
Black Extension: 0
Gamma Adjustment: 2.2
Panel Brightness: Mid
Contour Emphasis: Off
AGC: 0
HDMI Settings
***Leave all settings in this menu at their default***
Advance Picture
Block NR: Off
Mosquito NR: Off
Motion Smoother: Off
Black Level: Light
3:2 PullDown: Auto
Reference:
http://www.highdefjunkies.com/showthread.php?9896-Official-Panasonic-TC-PXXVT30-Owner-s-Discussion
http://www.highdefjunkies.com/showthread.php?9134-2011-Panasonic-Settings-Issues-Thread
http://www.highdefjunkies.com/showthread.php?1772-The-Official-quot-How-to-Check-the-Hours-Used-on-Your-Plasma-quot-Thread
http://www.highdefjunkies.com/showthread.php?9134-2011-Panasonic-Settings-Issues-Thread&p=277581&viewfull=1#post277581
http://www.controlcal.com/forum/showthread.php?t=755
http://www.controlcal.com/forum/showthread.php?p=6281

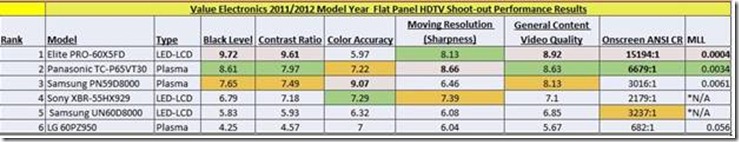

http://www.valueelectronics.com/images/pdf/VE%202011%20shoot-out%20results.pdf
